Forward Programming Field ID <XXXX> Reference
Some receiver updates might not require a transmitter update, but will have new messages that the transmitter doesn’t support.
Table
The following is a lookup table to indicate what message Field ID’s correspond to.
Field ID (Hex) | Field ID (Decimal) | Message |
|---|---|---|
02BD | 701 | Dynamic Response |
02BE | 702 | AS3X Throttle Arm |
02BF | 703 | Skip Gyro Cal |
02C0, 02C1, 02C2, 02C3, 02C4, 02C5 | 704, 705, 706, 707, 708, 709 | Warning: Disabling the gyro calibration will disable the following: SAFE, Heading Hold, ASS3X Throttle Arm |
02C7, 02C8, 02C9, 02CA, 02CB, 02CC | 711, 712, 713, 714, 715, 716 | The model should be set up to use 100% as the maximum Rate setting. Servo Travel adjustments should be used if reduced travel is needed. |
02D5 | 725 | FastBoot |
02D7 | 727 | SpektrumRC Wiki |
02D8 | 728 | https://wiki.spektrumrc.com |
02D9, 02DA, 02DB, 02DC, 02DD, 02DE | 729, 730, 731, 732, 733, 734 | FastBoot for this model requires waiting a set amount of time after shutting off the model before powering it again. Visit the SpektrumRC wiki for more details. |
02DF | 735 | Port Mapping |
02E0 - 02F3 | 736 - 755 | RX Port 1-20 |
0300 | 768 | Stick Input Test |
0301 | 769 | Steering Channel |
0302 | 770 | Steering Gains |
0303 | 771 | Retract Setup |
0304 | 772 | Retract CH Val |
0305 | 773 | CH Transition Point |
0306 | 774 | Port Settings |
0307 | 775 | Relearn |
Example
One specific case of this is DX G2 radios no longer receiving updates after 2.11. Some receivers received an update (3.2.7 on Jan 6, 2025) which includes some new messages not supported in the DX radio
Here's an example of a screen using unkown ID’s on a DX radio vs an updated NX radio.
DX18 G2 on version 2.11

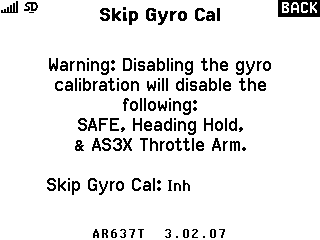

NX20 on Version 4.1.16
